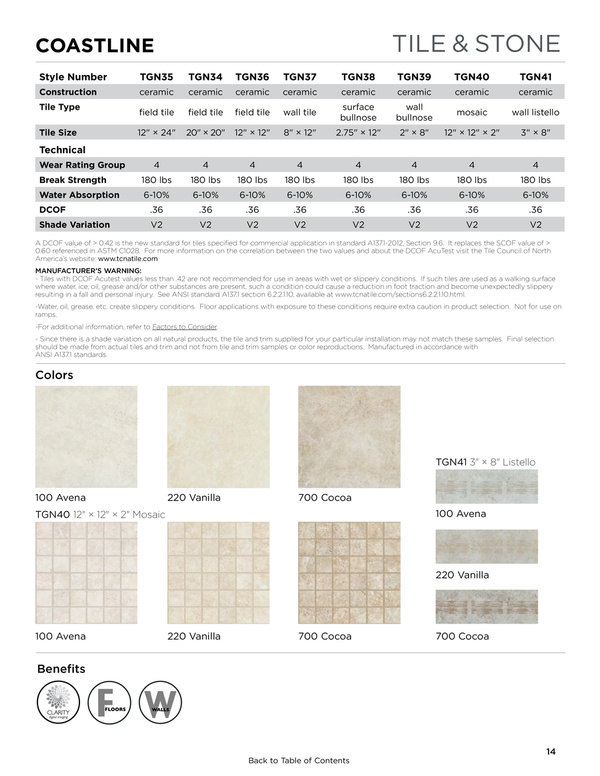

COASTLINE Style Number Construction Tile Type Tile Size TILE & STONE TGN34 ceramic field tile 20" × 20" 4 180 lbs 6-10% .36 V2 TGN35 ceramic field tile 12" × 24" 4 180 lbs 6-10% .36 V2 TGN36 ceramic field tile 12" × 12" 4 180 lbs 6-10% .36 V2 TGN37 ceramic wall tile 8" × 12" 4 180 lbs 6-10% .36 V2 TGN38 ceramic surface bullnose 2.75" × 12" 4 180 lbs 6-10% .36 V2 TGN39 ceramic wall bullnose 2" × 8" 4 180 lbs 6-10% .36 V2 TGN40 ceramic mosaic 12" × 12" × 2" 4 180 lbs 6-10% .36 V2 TGN41 ceramic wall listello 3" × 8" 4 180 lbs 6-10% .36 V2 Technical Wear Rating Group Break Strength Water Absorption DCOF Shade Variation A DCOF value of > 0.42 is the new standard for tiles specified for commercial application in standard A137.1-2012, Section 9.6. It replaces the SCOF value of > 0.60 referenced in ASTM C1028. For more information on the correlation between the two values and about the DCOF AcuTest visit the Tile Council of North America’s website: www.tcnatile.com MANUFACTURER’S WARNING: - Tiles with DCOF Acutest values less than .42 are not recommended for use in areas with wet or slippery conditions. If such tiles are used as a walking surface where water, ice, oil, grease and/or other substances are present, such a condition could cause a reduction in foot traction and become unexpectedly slippery resulting in a fall and personal injury. See ANSI standard A137.1 section 6.2.2.1.10, available at www.tcnatile.com/sections6.2.2.1.10.html. -Water, oil, grease, etc. create slippery conditions. Floor applications with exposure to these conditions require extra caution in product selection. Not for use on ramps. -For additional information, refer to Factors to Consider. - Since there is a shade variation on all natural products, the tile and trim supplied for your particular installation may not match these samples. Final selection should be made from actual tiles and trim and not from tile and trim samples or color reproductions. Manufactured in accordance with ANSI A137.1 standards. Colors TGN41 3" × 8" Listello 100 Avena TGN40 12" × 12" × 2" Mosaic 220 Vanilla 700 Cocoa 100 Avena 220 Vanilla 100 Avena 220 Vanilla 700 Cocoa 700 Cocoa Benefits Back to Table of Contents 14
